| Channel Configuration |
Clean and Lead |
| EQ |
3 band EQ per channel |
| Voice Switches |
Clean (None), Lead (1/2) — for Master 1/2 |
| Bright Switches |
Clean (on/off), Lead (on/off) — for Master 1/2 |
| Loop Switches |
Clean (on/off), Lead (on/off) — for Master 1/2 |

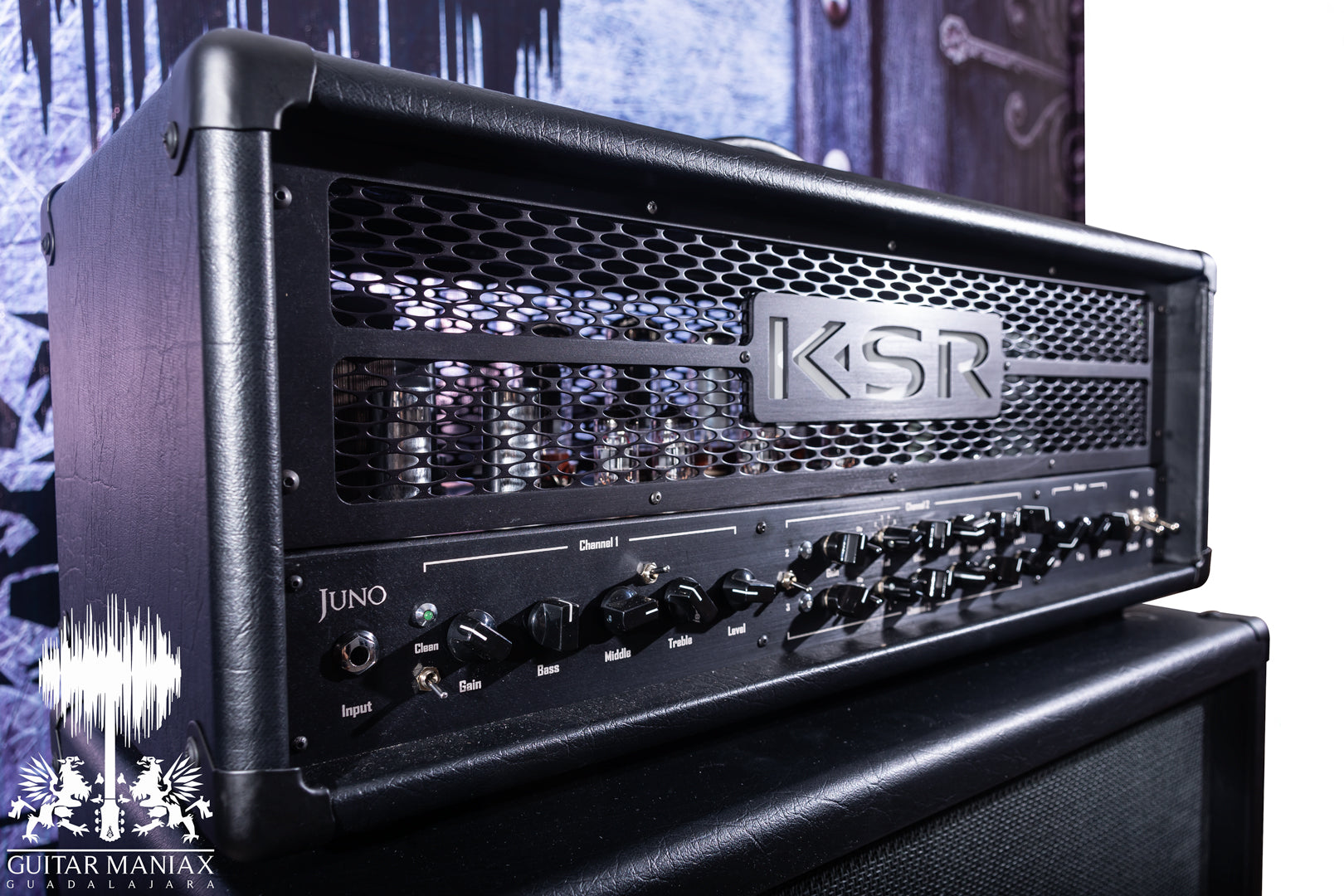

| Clean Channel Controls |
Gain, Bass, Middle, Treble, and Level knobs; Bright, Loop, and Channel Select switches |
| Lead Channel Controls |
Gain 1, Gain 2, Bass, Middle, Treble, and Level knobs; Bright, Voice, and Loop switches |

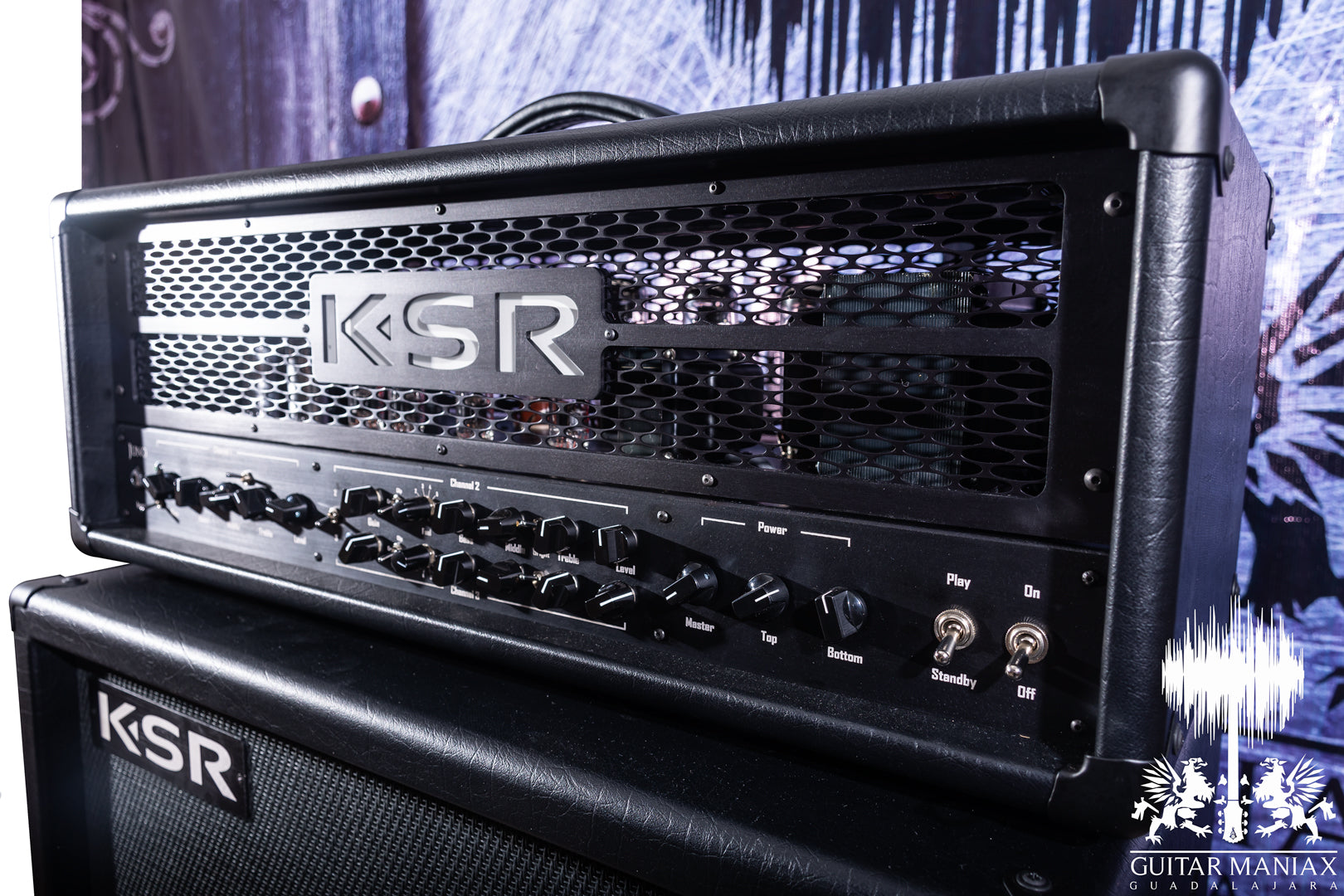

| Master Controls |
Master Volume 1, Master Volume 2, Top, and Bottom knobs; Master Volume Select switch |
| Foot Switch |
Custom 2 button with Channel 1/2 and Master 1/2 select |
| Remote Controllable Functions |
Channel select, master volume select, Gain 1/2 select, Voice 1/2 select, Bright on/off select, loop bypass |
| Control Options |
Front Panel and 1/4″ contact closure |
| Bias Test Points |
Measure with any DMM capable of DC millivolts, 1 mV = 1 mA of plate current, assume 460 plate volts |
| Bias Adjustment Pot Location |
On top of chassis. Guaranteed to bias properly with most tubes |
| Output Power |
At least 100-120W with quartet, 50-60W with duet (two outer tubes removed) |

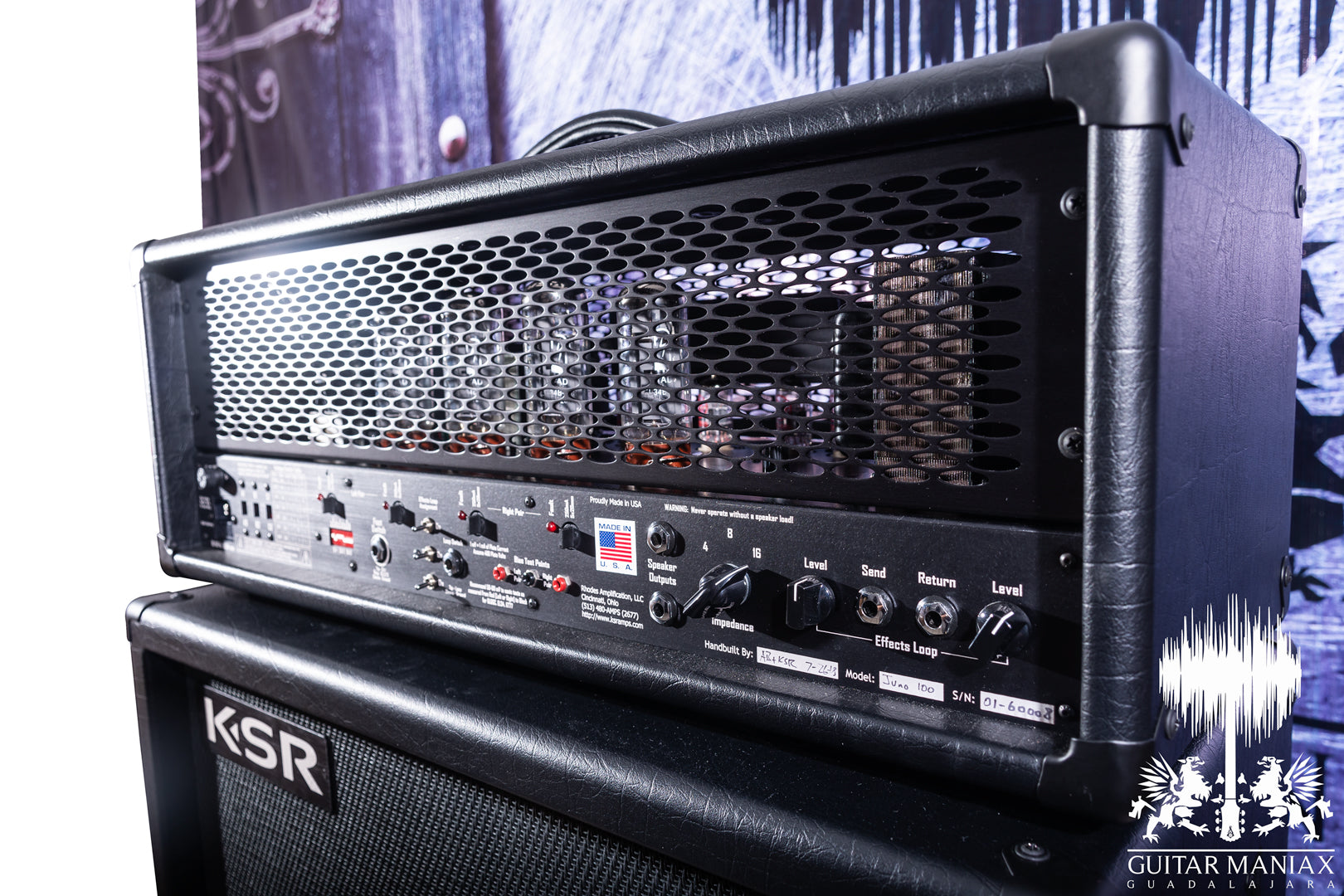

| Output Impedance |
Switchable between 4, 8, or 16 ohms into parallel jacks |
| Compliance |
Designed to comply with CE, UL, CSA, TUV, FCC, and RoHS standards |
| Head Shell Dimensions |
26.75″ L x 11″ W x 9.5″ H (excluding handle and feet) |
| Weight |
48 lbs |
| Shipping Dimensions |
32″ L x 16″ W x 16″ H |
| Shipping Weight |
56 lbs |
